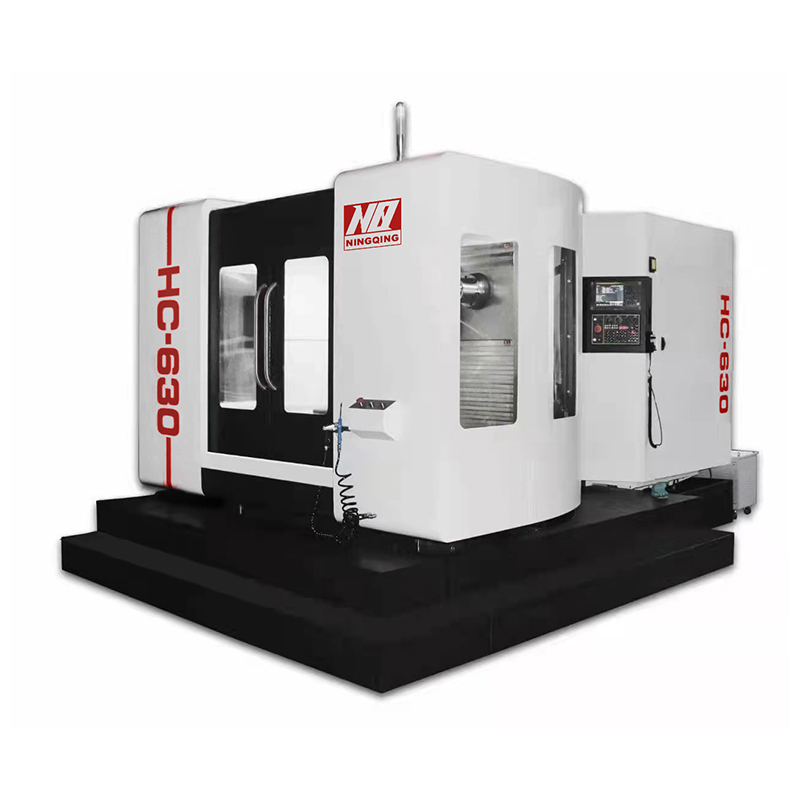

HC500,630,800,1000 series
Availability: | |
---|---|
Quantity: | |
PRODUCT DESCRIPTION
HC500,630,800,1000 series | |
![]() | |
High spindle power, strong cutting force, suitable for cast iron, steel, low-speed processing, especially suitable for large mold processing; Large stroke, wide processing range; Increase imported CNC rotary table can realize one clamping, processing four surfaces; Increase FAGOR high-speed precision scale can achieve ultra-precision machining requirements. Large cutting, high precision, is an alternative to imported horizontal machining centers and mass production of the ideal models. |
PRODUCT PARAMETERS
Parameters | Unit | HC500 | HC630 | HC800 | HC1000 | HC630 (double workbench) | HC800 (double workbench) |
Workbench area | mm | 500x600 | 630x700 | 800x800 | 1000x1000 | 630x700 | 800x800 |
Table Indexing | / | 1°x360 | |||||
T- slot | mm | 5x22 | |||||
Lndexing accuracy | / | 10" | 12" | ||||
Table load | kg | 750 | 1000 | 1500 | 2000 | 950 | 1500 |
X/Y/Z travel | mm | 800/700/750 | 1050/750/900 | 1300/1000/1000 | 1600/1000/1000 | 1050/750/900 | 1100/850/900 |
Guide way | / | Roller guide way | |||||
Spindle nose to table surface | mm | 120-820 | 120-870 | 120-1120 | 120-1120 | 0-750 | 0-850 |
Spindle nose to table | mm | 130-880 | 130-1030 | 200-1200 | 200-1200 | 130-1030 | 180-1080 |
Spindle taper | / | BT50 | |||||
Spindle speed | rpm | 6000 | |||||
Spindle moto | Kw | 15/18.5 | |||||
Feeding speed | m/min | 10 | |||||
Rapidt speed | m/min | 30 | 30 | 24 | 24 | 24 | 24 |
ATC capacity tool change time | / | 30T/5.5S | 30T/5.5S | 40T/5.5S | 40T/5.5S | 40T/5.5S | 40T/5.5S |
Positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.012 |
Repeatability accuracy | mm | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.01 |
Machine weight | t | 11 | 12 | 17 | 18 | 14 | 18 |
Dimension | mm | 3600x6000x3000 | 3600x6000x3000 | 4800x6400x3900 | 4800x6400x3900 | 3600x7500x3000 | 5500x8000x3000 |
Control system | / | Fanuc Oi MF3 Plus/Siemens |
SCENARIO SOLUTIONS
AEROSPACE
MOULD
FAQs
Q:How does Ningqing support the new energy vehicle industry? A:We offer advanced machining solutions for lightweight chassis, battery housings, and motor components, focusing on sustainability and performance enhancement for EV manufacturers. |
Q:Can Ningqing's technology handle the challenges of processing photovoltaics materials? A:Yes, our photovoltaic solutions are optimized for precise and efficient handling of fragile and high-performance materials, ensuring maximum energy capture and reliability in solar panels. |
Q:How do Ningqing's precision molds improve manufacturing efficiency? A:Our precision molds are designed for high repeatability, enhanced durability, and faster production cycles. This results in reduced lead times and consistent product quality. |
Q:How does Ningqing ensure the quality and durability of its products? A:We employ strict quality control measures, advanced testing processes, and state-of-the-art materials to ensure long-lasting and reliable performance. |
